Recycle Bin Segmentation
Jan. 31st, 2021ยท8 min read

Project Report

As this was part of my graduate studies I can't publish the code but you can find the formal writeup associated with the project here. Also the report has much more detail than this post will so I highly advice you look through it for more information, here I will be focusing on high level principles and results.

Introduction

In this post we will discuss an approach to detecting US household recycling bins and attempt to understand the shortcomings of the given implementation.

Problem Statement

In this problem we are tasked with establishing bounding boxes for recycle bins in images. In particular the formal goal is to first establish a binary segmentation and then use regionprops from scikit-image to determine a bounding box.

Approach

I opted to train a logistic regression model to classify each pixel in the image as either being a recycle bin or not. For a reference on how to implement logistic regression and what it is refer to this post I made before.

Dataset

Here I will describe how I accumulated the dataset and any feature engineering done before training.

Labeling

The problem is we were only given images that may or may not contain recycling bins but we do not have labeled data for what regions contain a bin. To solve this, I used the roipoly module to manually section off regions and capture all pixels within the region as recycling bin pixels and labeling all others as not recycling bin.

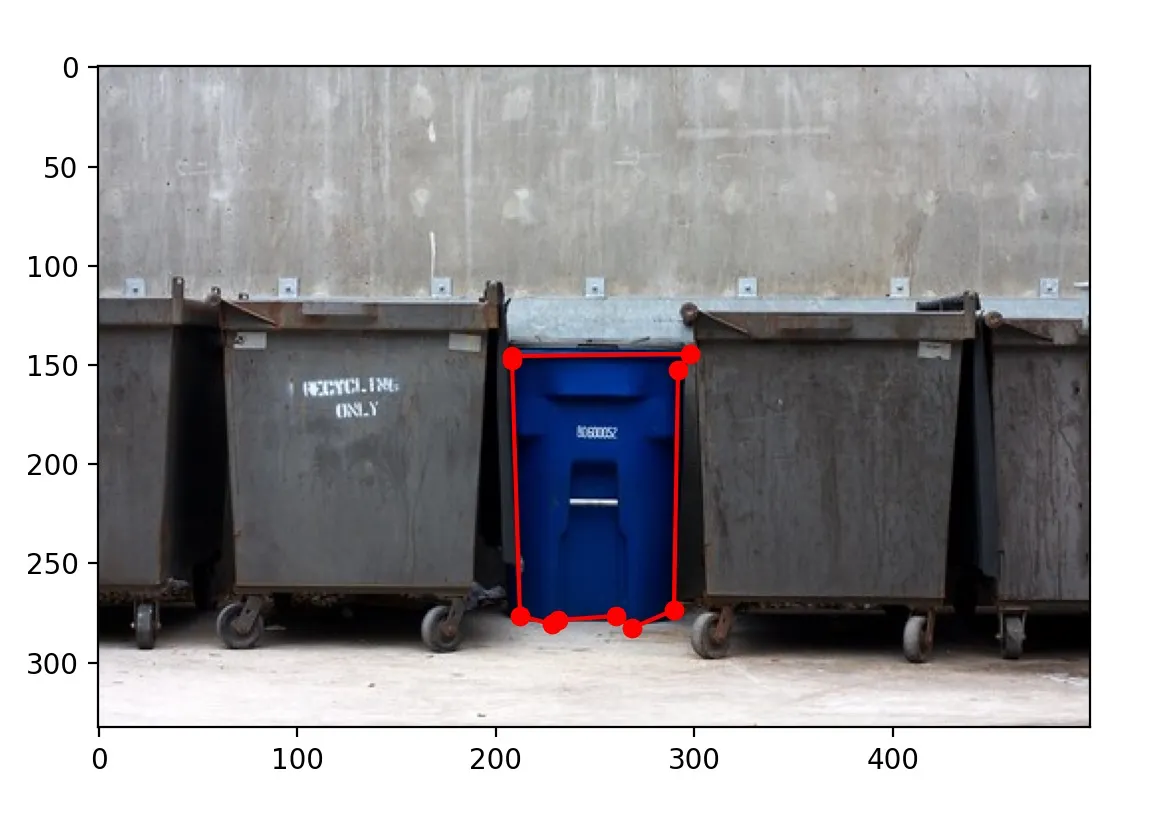

roipoly Example
roipoly Example

After going through the entire set of images (~70 images), I then had a corpus of pixels for each label. To validate this, I created a collage of pixels to see if the captured pixels seemed reasonable. Given the colors I would expect for a recycling bin I think the separation is quite good.

Recycle Bin Pixels
Recycle Bin Pixels

Non Bin Pixels
Non Bin Pixels

Feature Engineering

Currently the only features present for each example are the RGB values of each pixel. To attempt to help the model in classifying the pixels I thought it would be beneficial to add the HSV color space alongside RGB. In the past, I've used HSV thresholding for simple segmentation so I believe that adding it here will help resolve some as the color is directly encoded in one of the values as opposed to requiring all values in RGB. So for each pixel we'll classify on a feature set that looks like:

Given all this information we can continue to model construction and training.

Model Construction

As mentioned prior, I chose to implement a logistic regression for the individual binary classification of each pixel.

Forward Pass

To construct the model all I needed to do was to create all the necessary functions for the forward pass. Again, I am omitting many of the smaller helper functions and such and giving a general overview of my process here, if you would like a more in depth (tutorial like) post let me know!

Training

A change I made from my prior blog post was to implement stochastic gradient descent to improve training speed. The training is identical to that of my prior blog post except that the batch used to compute the gradient is a subset of the entire dataset. This is why the training accuracy is quite rough in the below plot.

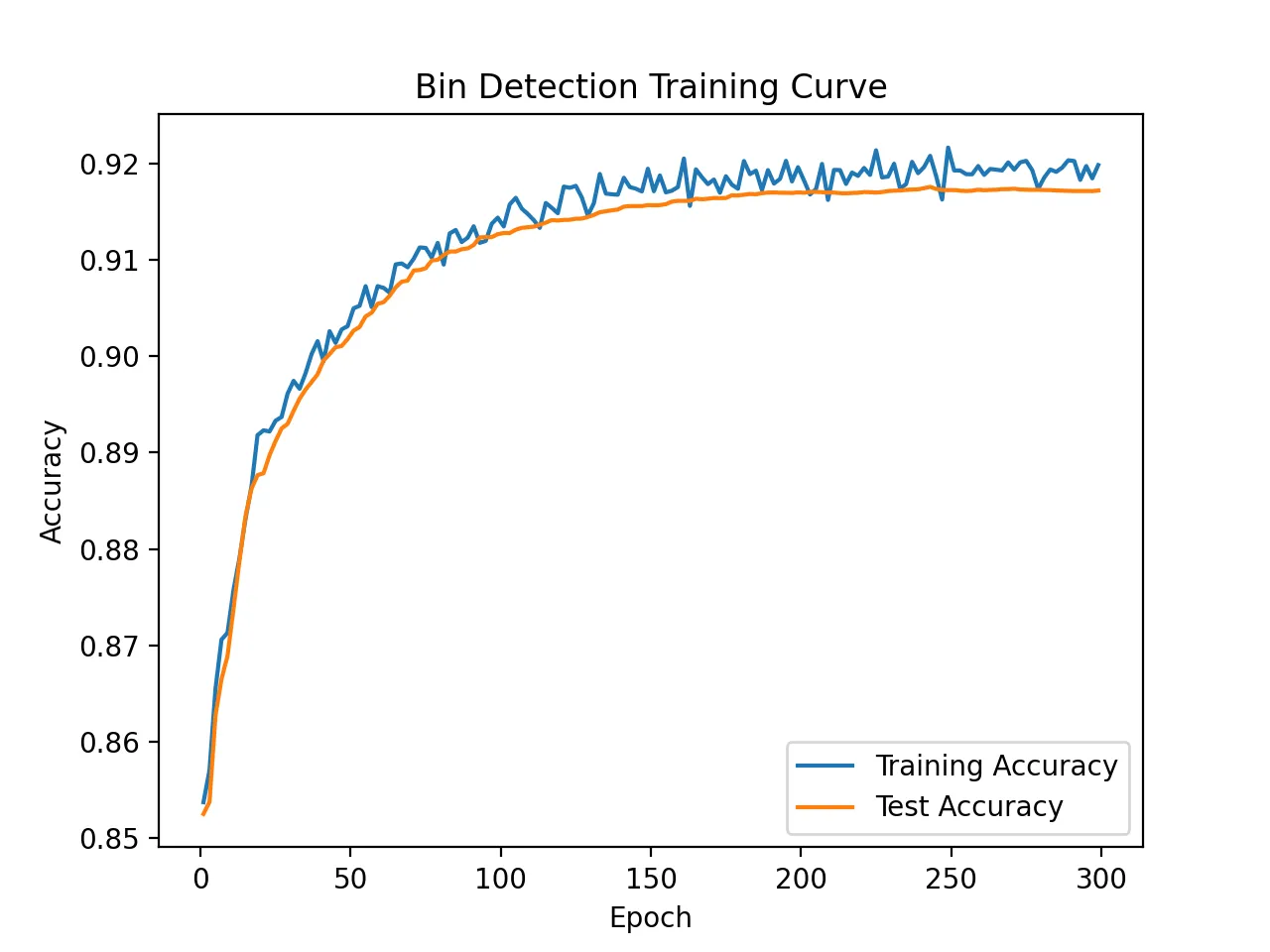

Training Curve
Training Curve

The below code makes up the main portion of all the training code. A change I would make in hindsight is to not make the subset selection entirely stochastic, but instead pre-allocated mini batches.

Evaluation

Now that we have a trained model, we can go ahead and pass the entire reshaped image through the model to get an array of probabilities that can be reshaped back into an image. From the second image, we can see that the recycling bins are clearly "hotter" than the surrounding pixels. After tuning the threshold to determine the classification we can get to quite a good result as in the third image!

Input Image
Input Image

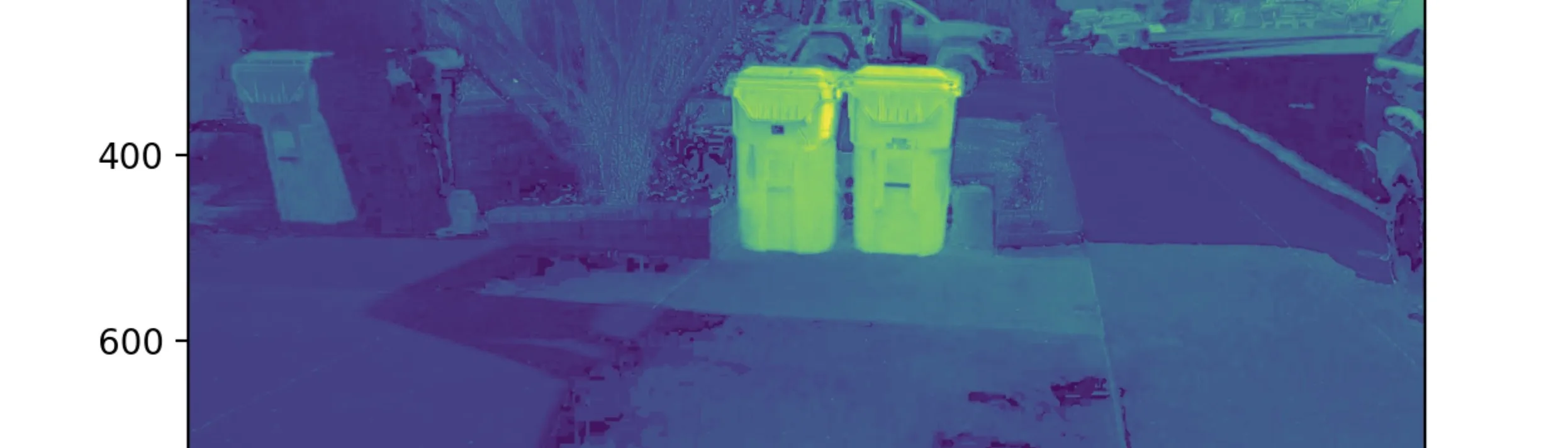

Probability Image
Probability Image

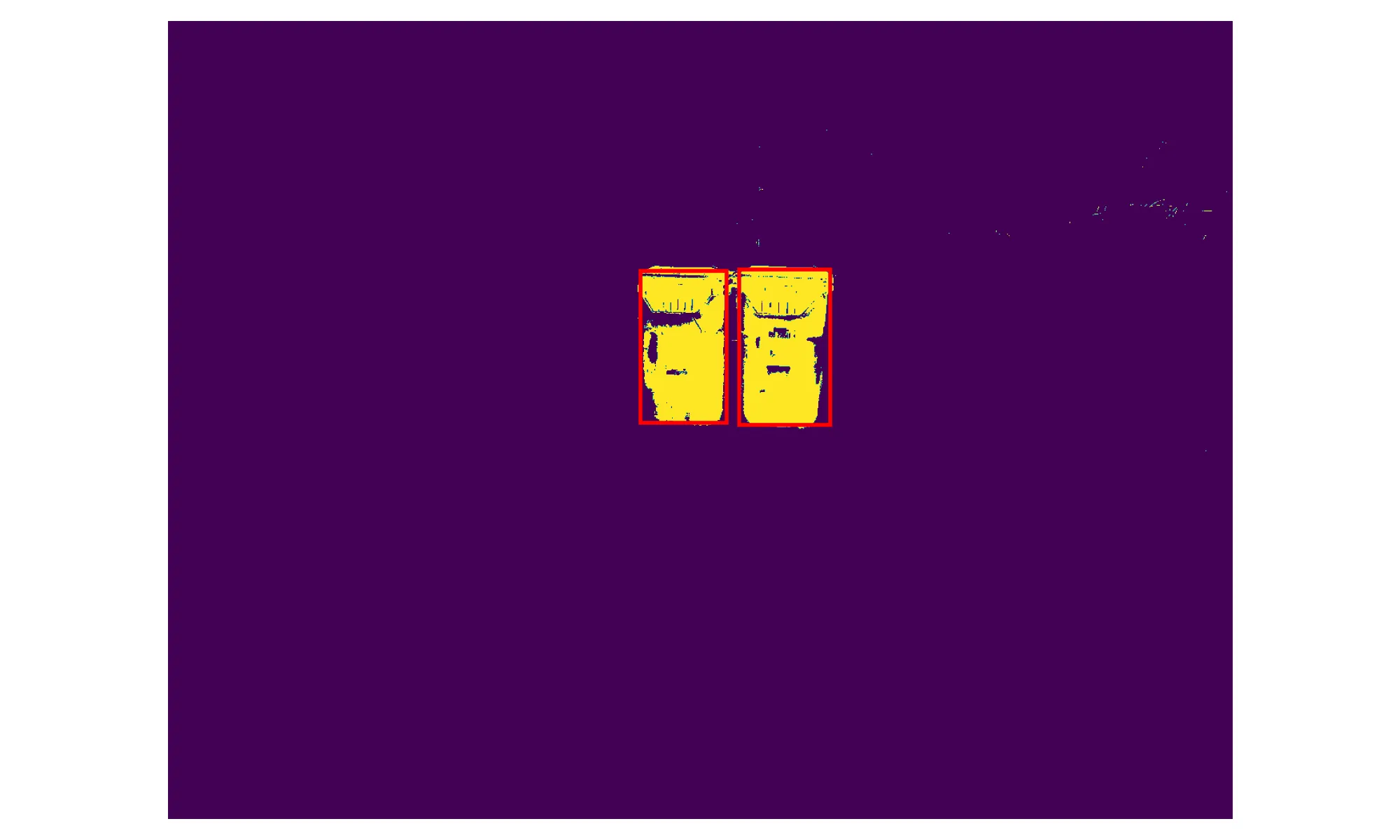

Segmented Image
Segmented Image

Improvements

I want to make it clear that this is not a great architecture to solve this problem, but one that is convenient and tractable. As we are treating each pixel as an independent classification problem, there is no spatial correspondence. With modern architectures like CNNs, not only would color play a role in detection but also structure and shape. This is easily shown as a problem where right now all I can do is a rough aspect ratio check but even that can be fooled.

False Positive Original
False Positive Original

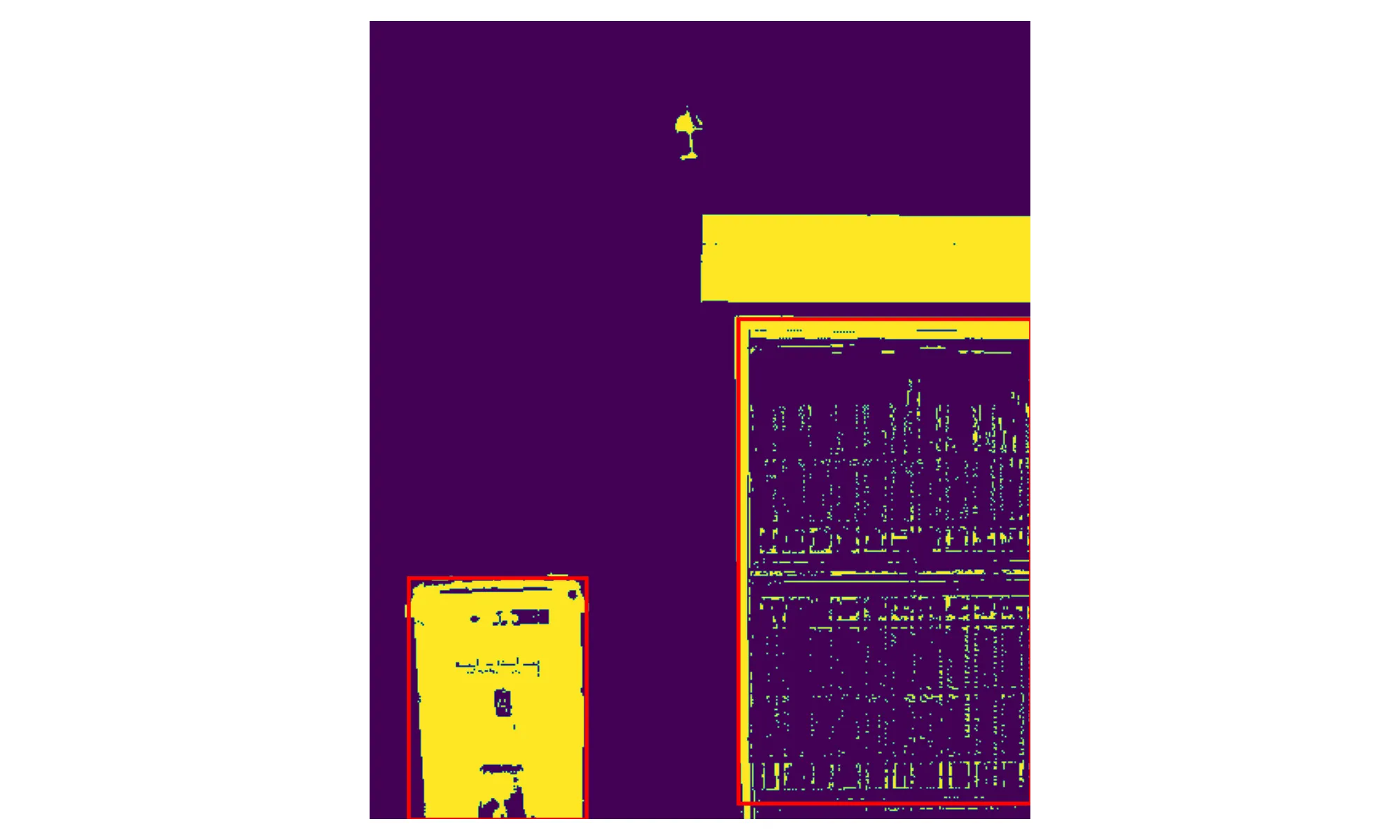

False Positive Detection
False Positive Detection

Questions

As always let me know if you have any questions and I'd be happy to answer!
